Lite | EDM2
Compatibility
Argo AI VMS
Use with Argo management platform to achieve seamless integration, unlocking the full potential of our cameras.
檔案下載
Download

產品介紹
Overview

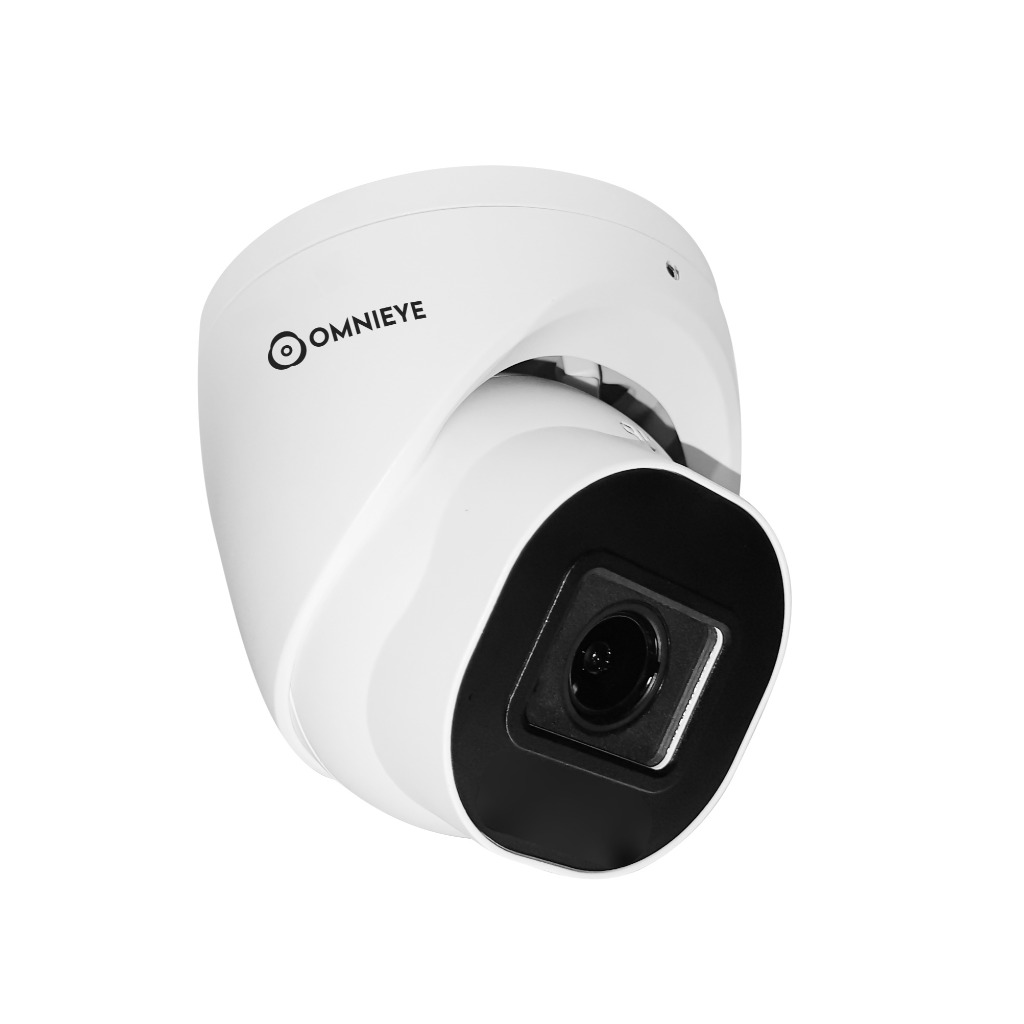

Omnieye Lite EDM features a lightweight design with the IMX335 starlight CMOS and IR technology, delivering excellent image quality day and night. Its motorized zoom lens and rugged aluminum housing provide IP67 and IK10 protection, ideal for reliable outdoor use.



Sony Starvis Sensor

Equipped with high sensitivity sensor that provides high quality images in low light environments.







IR Illuminators Night Vision

60m infrared night vision ensures clear visibility in low or no-light conditions, enhancing 24/7 surveillance..







Smart Analytics

Built-in smart analytics include motion, human, line crossing, privacy masking, and intrusion detection for fast event monitoring.







ONVIF Profile G, S, T

Supports ONVIF Profile G, S, T . Reducing integration time and cost while providing flexible cross-brand system applications.







IP67/IK10

Lite series cameras feature enclosures that are IP-rated for water and dust resistance, and IK-rated for impact.


SR-C-A5-EDM2-V13-IR

          Max. resolution

5MP (2592x1944)

          Image sensor

1/2.7" (max) , IMX335 (Starvis Sensor)

          Lens

2.7-13.5mm, F1.6 Remote Focus/Zoom

          FOV (horizontal)

102° - 33°

          Min. illumination (lux)
          color/b&w

0.00667/ 0 lux

          IR tech. / range

60m

         SoC

Shutter speed 1~1/100,000

        Image settings

Corridor mode(90°、270°) / ROI / AWB/AE/AGC

          Video compression

Smart codec, H.265,
H.264, MJPEG

          Max. frame rate

30fps

          WDR

120db

          Rotation and mirror

0°, 90°, 180°, 270°, Horizontal/Vertical mirror

         Special features

-Privacy mask
-Defog

          Audio support

Mic in (line in & out)

          Intelligent inside

Human detection
Line Crossing detection
Intrusion detection
Camera occlusion detection

          Edge storage

MicroSD/SDHC/SDXC/UHS-I up to 256GB

Note: Please let us know before shipping if you’d like an SD card (optional) added—we’ll install and configure it to spec prior to shipment.

          Power

DC12V, PoE（IEEE 802.3af）

          Dimensions

126(H) x 110 (Ø) mm

         IP codes / IK ratings

IP67/IK10

          Certifications

loT Cyber Security,
UL, CE, FCC

          ONVIF

Profile G, S, T

         Operating temp.

-25°C~ 60°C





Omnieye Lite EDM features a lightweight design with the IMX335 starlight CMOS and IR technology, delivering excellent image quality day and night. Its motorized zoom lens and rugged aluminum housing provide IP67 and IK10 protection, ideal for reliable outdoor use.



Sony Starvis Sensor

Equipped with high sensitivity sensor that provides high quality images in low light environments.







IR Illuminators Night Vision

60m infrared night vision ensures clear visibility in low or no-light conditions, enhancing 24/7 surveillance..







Smart Analytics

Built-in smart analytics include motion, human, line crossing, privacy masking, and intrusion detection for fast event monitoring.







ONVIF Profile G, S, T

Supports ONVIF Profile G, S, T . Reducing integration time and cost while providing flexible cross-brand system applications.







IP67/IK10

Lite series cameras feature enclosures that are IP-rated for water and dust resistance, and IK-rated for impact.


SR-C-A5-EDM2-V13-IR

          Max. resolution

5MP (2592x1944)

          Image sensor

1/2.7" (max) , IMX335 (Starvis Sensor)

          Lens

2.7-13.5mm, F1.6 Remote Focus/Zoom

          FOV (horizontal)

102° - 33°

          Min. illumination (lux)
          color/b&w

0.00667/ 0 lux

          IR tech. / range

60m

         SoC

Shutter speed 1~1/100,000

        Image settings

Corridor mode(90°、270°) / ROI / AWB/AE/AGC

          Video compression

Smart codec, H.265,
H.264, MJPEG

          Max. frame rate

30fps

          WDR

120db

          Rotation and mirror

0°, 90°, 180°, 270°, Horizontal/Vertical mirror

         Special features

-Privacy mask
-Defog

          Audio support

Mic in (line in & out)

          Intelligent inside

Human detection
Line Crossing detection
Intrusion detection
Camera occlusion detection

          Edge storage

MicroSD/SDHC/SDXC/UHS-I up to 256GB

Note: Please let us know before shipping if you’d like an SD card (optional) added—we’ll install and configure it to spec prior to shipment.

          Power

DC12V, PoE（IEEE 802.3af）

          Dimensions

126(H) x 110 (Ø) mm

         IP codes / IK ratings

IP67/IK10

          Certifications

loT Cyber Security,
UL, CE, FCC

          ONVIF

Profile G, S, T

         Operating temp.

-25°C~ 60°C
