AI VMS Server
Compatibility
Cameras
Spark cameras, Omnieye cameras, LPR cameras, Onvif cameras, and other 3rd party device integration upon request.
檔案下載
Download

產品介紹
Overview

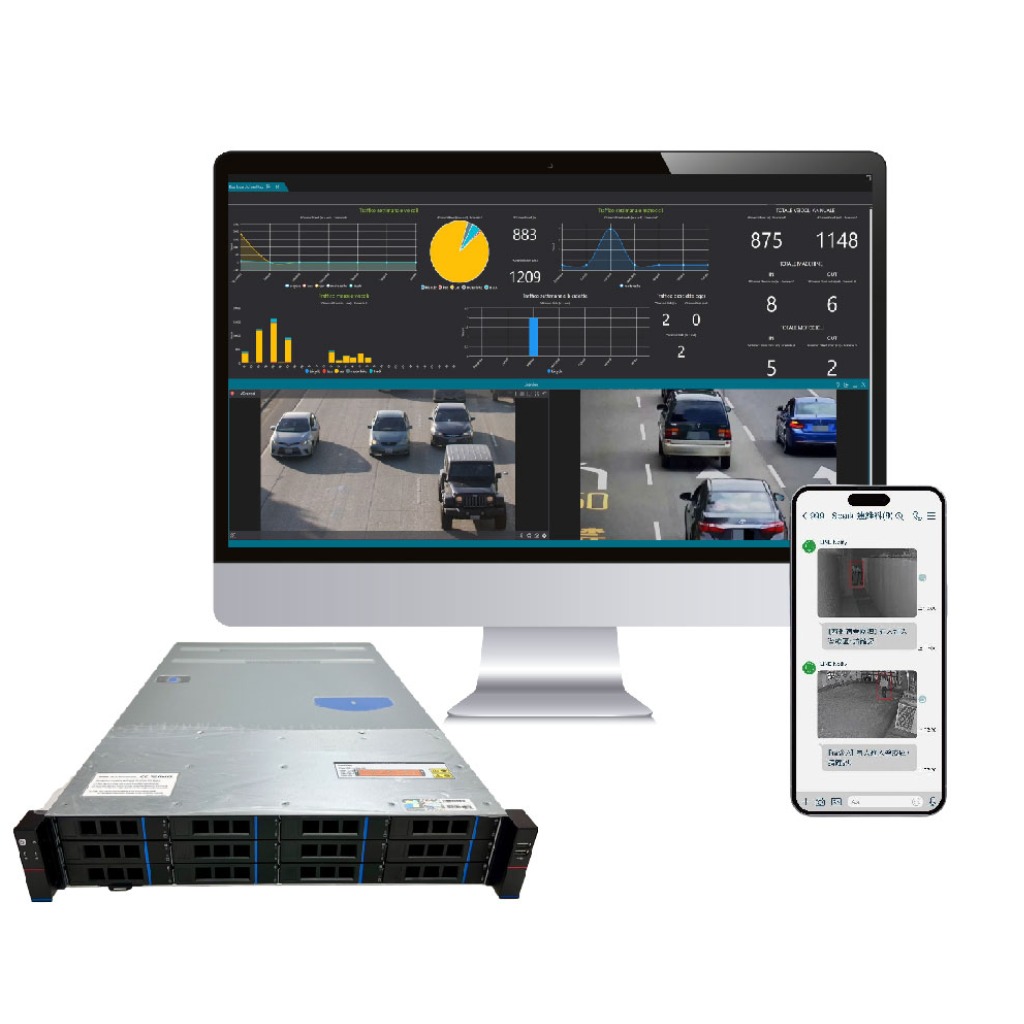

Spark's one-stop solution AI VMS Server, is equipped with high efficiency AI chip, cutting-edge VMS technology and an expandable rack-mount server that support 64 channels for surveillance system.It provides users a comprehensive solution.Moreover, through built-in software, even analog cameras can be seamlessly upgraded to AI function.In addition, it supports various AI detection functions and LINE /Email notifications, empowering users to respond promptly to events and mitigate risks effectively.As the cornerstone of Spark's solutions, AI VMS Server delivers comprehensive management and flexible integration options, facilitating user-friendly enhancement of security, operational efficiency, and intelligent management.AI VMS Server is suitable for large-scale areas such as schools, retail stores, office buildings , and can also improve the safety of smart cities and roads/traffics monitoring.

One-stop solution for surveillance




AI VMS Server



AI System
High efficiency AI chip, detect precisely

 VMS Management
VMS System, enables quick response

X86 Server
Rack-mount server for surveillance usage




A surveillance system suitable for large-scale monitoring



AI and video analysis
AI crowd/vehicle/smoke /fire detection.Accurately identify objects and conduct AI analytics.

Dashboard
User friendly design, organize camera video analysis and heatmaps into data dashboards, presenting metadata in a graphical format for easy comprehension. 		 Health Doctor
Detect the abnormal signal ,sent out notification and provide basic troubleshooting procedures. Even cameras in distant, personnel can find out immediately.

LINE notifications
Providing instant notifications via the LINE app/Email whenever an event occurs. The notification can be grouped, scheduled.





Third party integration

Supports ONVIF and RTSP video input, offering flexible compatibility with existing devices. Even analog cameras can be seamlessly upgraded to AI function.

 Operate anywhere
Supports local and remote IP configuration operations, allowing users to stay in control even from a distance.

High-capacity
The rack-mounted server comes with dual 256GB system disks and features 12 additional expansion slots.

Scale monitoring
Supports 64-channel monitoring, catering to the needs of large-scale areas such as  stadiums, smart cities, and traffic detection.



AI System



Sever integrated with high-efficiency AI

Integrated server and software,the Spark AI VMS server is equipped with highly efficient surveillance system software, ensuring high-quality service. The system adopts Kneron's AI chip, enabling precise and efficient detection.




Various and accurate AI detection functions

Supports human, vehicle, smoke*, and fire* detection. With diverse AI detection functions, personnel can complete tasks easily.

*Optional




Analog cameras seamlessly upgraded to AI function

There are still over 60% analog cameras today. With AI server software, existing cameras can be easily upgraded to AI functionality without replacement.


VMS Management



LINE/Email Notification

Integrated with LINE Notify/Email notify functionality, providing instant notifications via the LINE app whenever an event occurs. This enables personnel to stay informed and take prompt action, even when they are off-site, effectively mitigating risks and hazards.




Health Doctor

Detect the abnormal signal, sent out notification and provide basic troubleshooting procedures.
Even cameras in distant, personnel can find out and take action immediately.




E-map

Supports multi-layer electronic maps with configurable device position and angle to simulate real surveillance scenario. When an event occurs, relevant cameras will automatically trigger alerts and display real-time footage, aiding personnel in responding swiftly to incidents.




Dashboard

Argo can organize camera video analysis and heatmaps into data dashboards, presenting metadata in a graphical format for easy comprehension. The data dashboard is highly flexible, allowing users to customize layouts and graphical representations according to their preferences and needs.

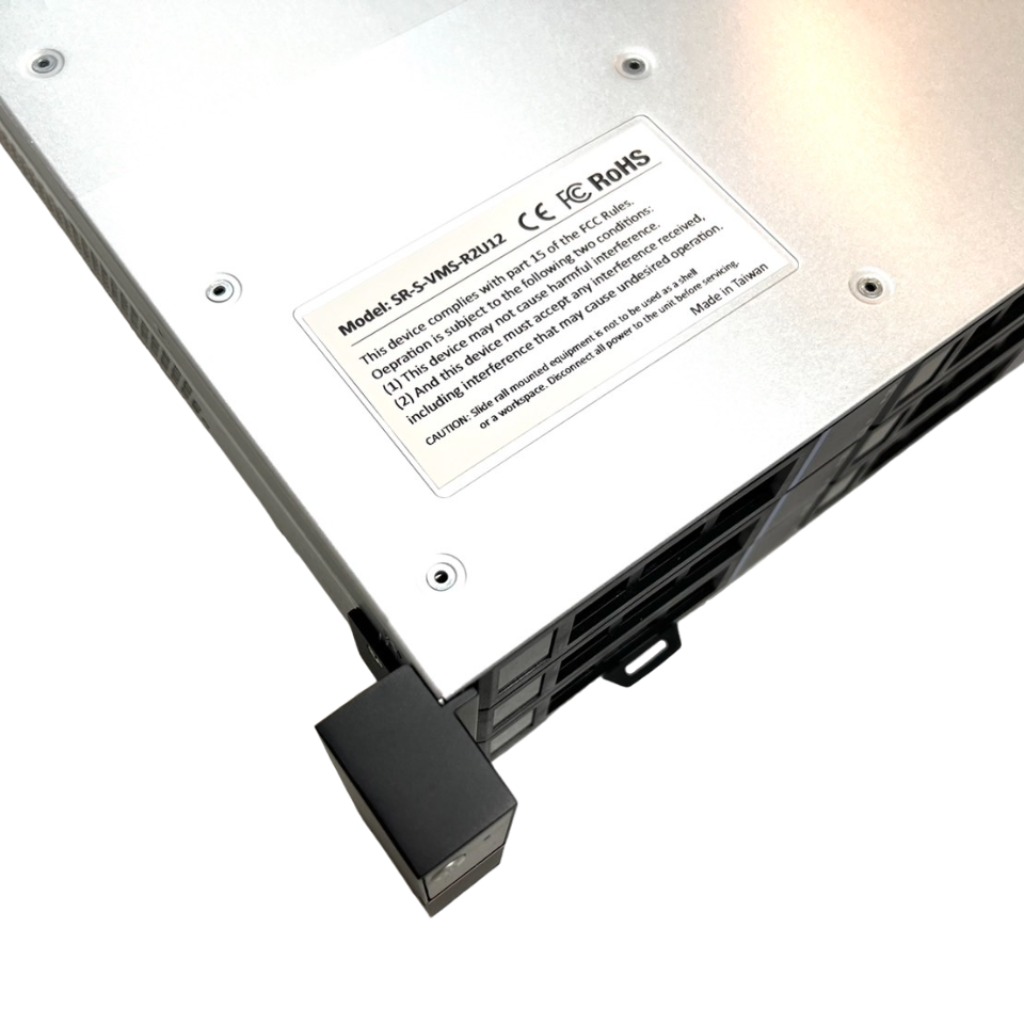

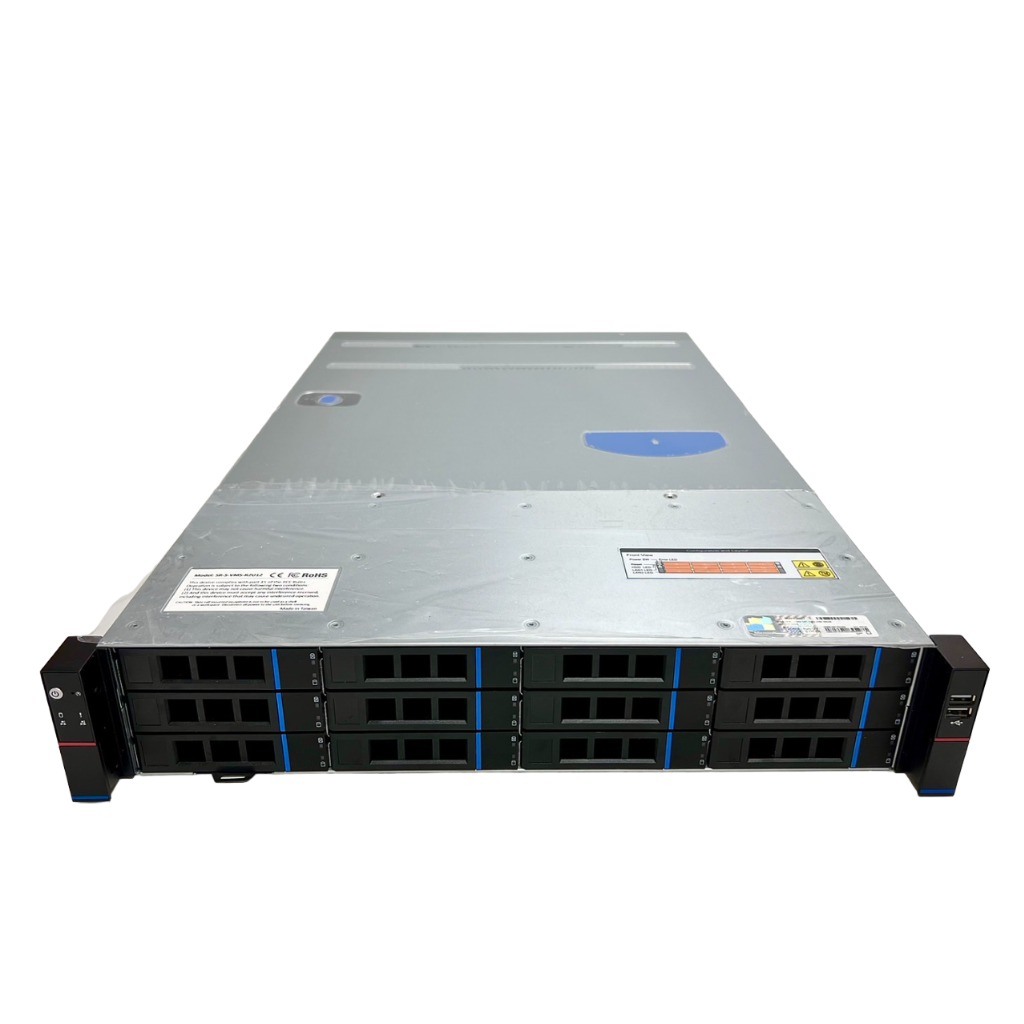

X86 Rack-mount Server



Suitable for large-scale monitoring

The X86 is a rack-mount server dedicated to surveillance usage. It is equipped with a 256GB system disk and 12 additional expandable slots, offering both high capacity and expandability. With support for 64 surveillance channels, it meets the requirements of large-scale areas such as stadiums, cities, and traffic monitoring.



Categories item AI VMS Server

AI Management

AI analytics

-Human detection/car, motorbike, truck, bus, bicycle detection (Max. 16 channels )
   -Object detection
   -Density detection
   -Loitering detection

-Smoke detection (optional)
-Fire detection (optional)
-Taiwan automatic license plate recognition (optional)

Platform management

Dashboard１

-Heatmap
-Vehicle classification: car, motorbike, truck, bus, bicycle
-People counting
-Vehicle counting

E-map

-Unlimited e-map layers
-Unlimited device to map
-Event pop-up
-Real-time display of license plate2
-Rephase device position
-Rephase device angle
-Color-coded camera alarm status differentiation

Health Doctor

-Spark AI failure
-Devices failure
-Network disconnection
-Disk failure
-CPU usage critical

LINE notification

-Grouped, Scheduled, Customized with content.
-LINE notify image (Interval 1-300 second )
General

Compatibility

Spark cameras, Omnieye cameras, 3rd party cameras3

Operating system

Win10 IoT，Support for multi-monitor output

Video compression

H.265, H.264, MJPEG

Audio support

Two-way audio (client)

Liveview

-32 channel views  (64 channels recording)
-Customizable layout
-Multi-stream management
-Event pop-up
-Manual snapshot and recording
-PTZ control

Recording

-64 channel recording  (Max. 80 channel)
-Continuous/Scheduled recording
-Event recording
-Edge recover
-Event pre/post recording

Playback

-Customizable layout
-Instant playback
-Synchronized playback
-Date and timeline visualization
-Event playback
-Playback speed controls
-Manual snapshot

Export

-Export multiple video with selectable time range
-Snapshot and videos
-support MOV、MKV、MP4、AVI、Spark format
-Support watermark

Certification

 CA

Event management

Event triggers

-Configurable based on device and schedule
-AND/OR trigger conditions
-Digital input
-Camera analytics4
-Argo AI analytics
-System related events
-User related events
-Device and network related events
-Third party events (LPR, eTag)

Event actions

-Configurable alarm SOP
-Configurable alarm recipient
-Recording (support  Pre-recording and post- recording can be up to 300 seconds)
-Digital output
-LINE notification
-PTZ preset
-PTZ tour
-Linked camera and pop-up image

System management

User privilige

Configurable based on camera, function and schedule

Camera management

Support basic camera settings

Third party device management

-Supports 24GHz radar, which can be used in conjunction with cameras for  perimeter protection.
-I/O module
-LPR camera
-eTag reader
-LED display

Server

Processor

-Intel® i5, 6 core, 2.9GHz~4.3GHz
-equipped with Smart Cache Memory 12MB

Display interface

-DP/ HDMI
Dedicated Graphics Chip with 2GB Memory

Integrated graphics

-UHD Graphics 630
-HDMI, DP, VGA

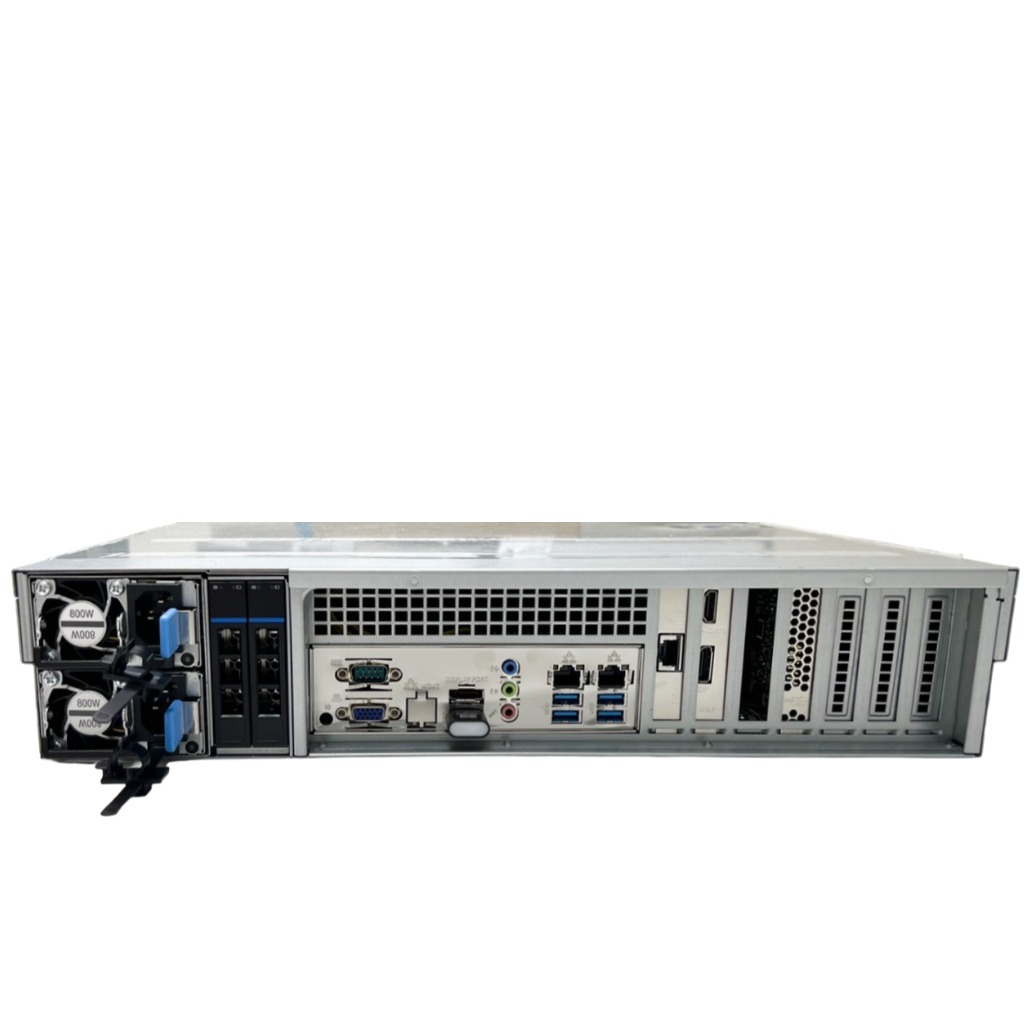

I/O port

-USB 3.2 ports x 4
 1 PCI E 3.0 x16
 1 PCI E 3.0 x8
 1 PCI E 3.0 x 4
-M.2 Interface:
Supports 2280/2242

Memory

-32GB ECC UDIMM, dual channels(16GB x 2)
-DDR-4 3200 MHz, maximum support128GB

System disk

Dual 256 GB SSDs, RAID 1

Disk Array
(LSI RAID)

Supports RAID 0, 1, 5, 6, 10, 50, 60, JBOD

HDD

Hotswappable. Supports up to 12 2.5/3.5-inch SATA-III hard drives, maximum of 16TB each

Network

RJ-45 Gigabit Ethernet Ports x 2

Accessories

Rack-mount slides

Power supply

800W 1+1 80 Plus Hot-swappable

Dimensions

670mm x 448mm x 88mm (D x W x H)

Certification

CE / FCC / BSMI

Operating Temperature

0°C ~ 40°C



Remark:
1. Only supports assigned camera.
2.Applicable to previousluy integrated camera models.
3. Third party camera compatible through ONVIF and RTSP.
4. Applicable to previousluy integrated camera models.
