Overview

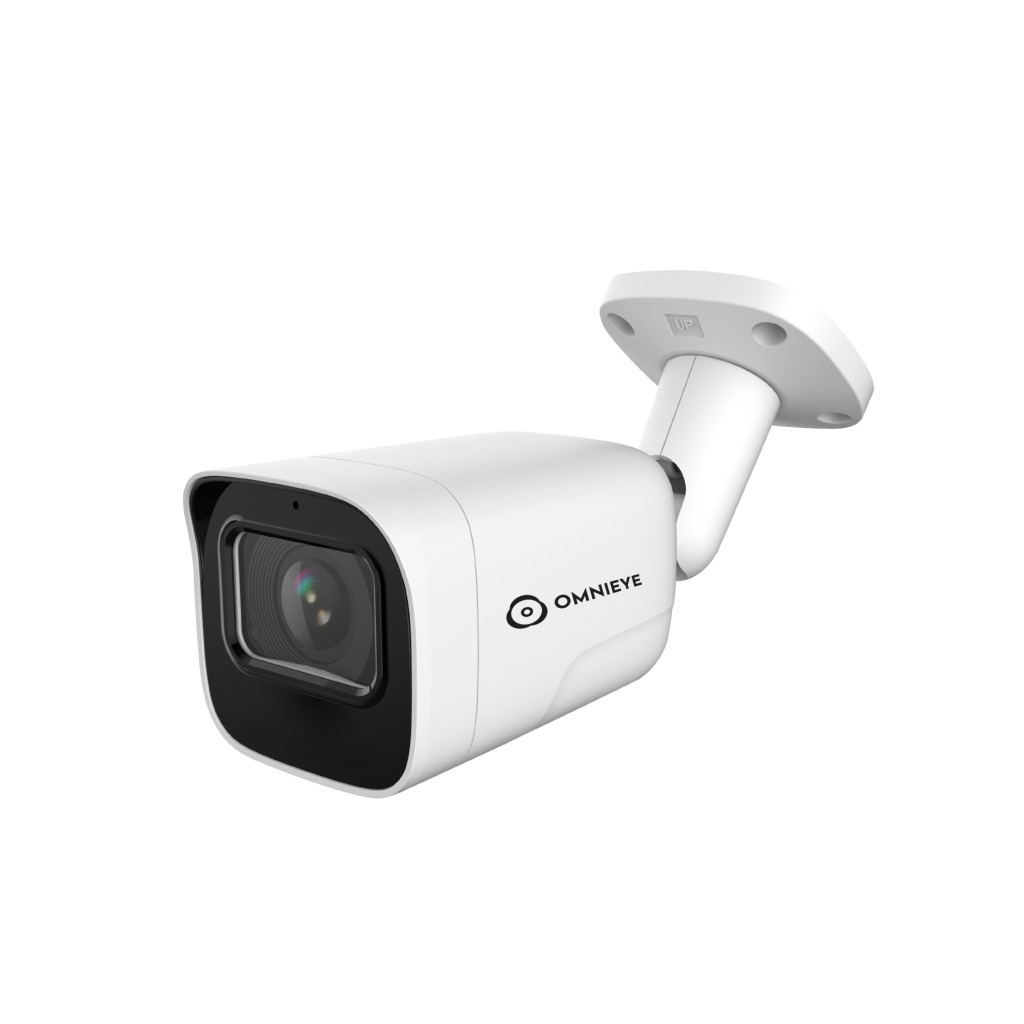

Omnieye Lite Series EBM2 offers remot zoom for flexible scene adaptation. With the IMX335 sensor and IR technology, it provides clear images in all lighting. Its IP67/IK10 aluminum housing ensures long-lasting outdoor durability.
All Lite series cameras are proudly made in Taiwan and are UL and IoT cybersecurity certified, ensuring the highest standards of safety and reliability.
 |
|
|
|
 |
|
|
|
 |
|
|
|
 |
|
|
|
 |
|
|
|
|
SR-C-A5-EBM2-V13-IR |
|
|
Max. resolution |
5MP (2592x1944) |
|
Image sensor |
1/2.7" (max), IMX335 |
|
Lens |
2.7-13.5mm, F1.6 Remote Zoom |
|
FOV (horizontal) |
102° - 33° |
|
Min. illumination (lux) |
0.00667 lux @ F1.6 (color) , 0 lux @ F1.6 (B/W) |
|
IR tech. / range |
60m |
|
SoC |
Shutter speed 1~1/100,000 |
|
Image Settings |
ROI / AWB/AE/AGC |
|
Video compression |
H.265,H.264 |
|
Max. frame rate |
30fps |
|
WDR |
120db |
|
Rotation and Mirror |
0°, 90°, 180°, 270°, Horizontal/Vertical mirror |
|
Special features |
-Privacy mask |
|
Audio support |
Two-way Line in & Out |
|
Intelligent inside |
Human detection |
|
Edge storage |
MicroSD/SDHC/SDXC/UHS-I up to 256GB |
|
Power |
DC12V, PoE（IEEE 802.3af） |
|
Dimensions |
70(W) x 70(H) x 220(L) mm |
|
IP codes / IK ratings |

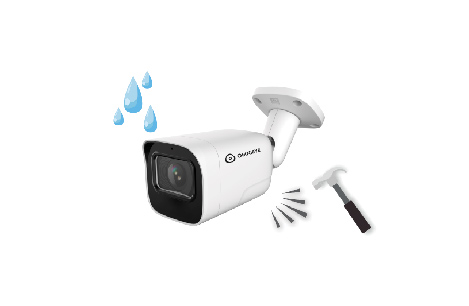

IP67/IK10 |
|
Certifications |
Taiwan loT Cyber Security, |
|
ONVIF |
Profile G, S, T |
|
Operating temp. |
-25°C~ 70°C |
